Brand Name : Zhonganxie
Model Number : TD-800
Certification : CE, FCC, ROHS
Place of Origin : China
MOQ : 1pc
Price : negotiation
Payment Terms : T/T
Supply Ability : 10000pcs per month
Delivery Time : 5-7 working days
Packaging Details : Carton boxes or according customer's need
Detection zones : 4 zones
Inspection rate : 1 person/second
Working voltage : 90V~240V 50/60Hz
Gross weight : 64KG
channel size : 2000x700mm
sensitivity : 0-200 sensitivity

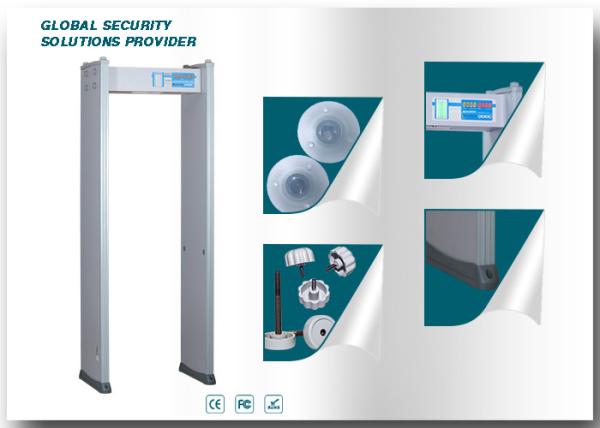

Indoor 4 Zones Walk Through metal detector door With Counter Record
Quick Detail
Model No: TD-800
Multi-alarm sounds to choose-to fit different applications
Counter: Record the pass and alarm numbers
Detection Technology:Even detection technology, no blind spot
Adjust the working frequency automatically or manually
Features
Sensitivity adjustable from Level 0 to 200
Model Number | TD-800 |
Technical Parameters | |
Vertical dimension | 2230x580x850mm |
Vertical channel size | 2000x700mm |
Main box packing size | 755x340x210mm |
Detection door packing size | 2290x630x190mm |
Net weight of main box/detection door | 56.6KG |
Gross weight of main box/detection door | 62.8KG |
Working voltage | 90V~240V 50/60Hz |
Power consumption | 20W |
Working frequency range | 1-50 bands |
Working environment temperature | -20℃ ~ 65℃ |
Installation environment | (W) 100cm* (L) 200cm (minimum range without metal) |
Our advantages

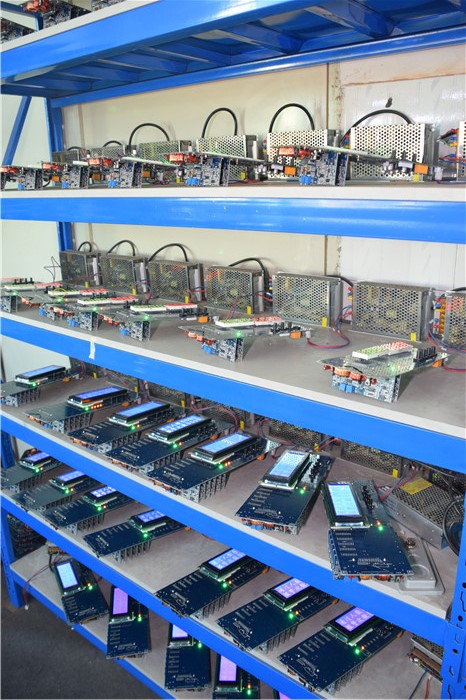

Workshop display
![]() |
Indoor 4 Zones Walk Through metal detector door With Counter Record Images |
